Mini PIR Alarm Sensor Infrared GSM Wireless Alarm

Mini PIR Alarm Sensor Infrared GSM Wireless Alarm

High Sensitivity Motion Detection Anti-theft Monitor

Operation:

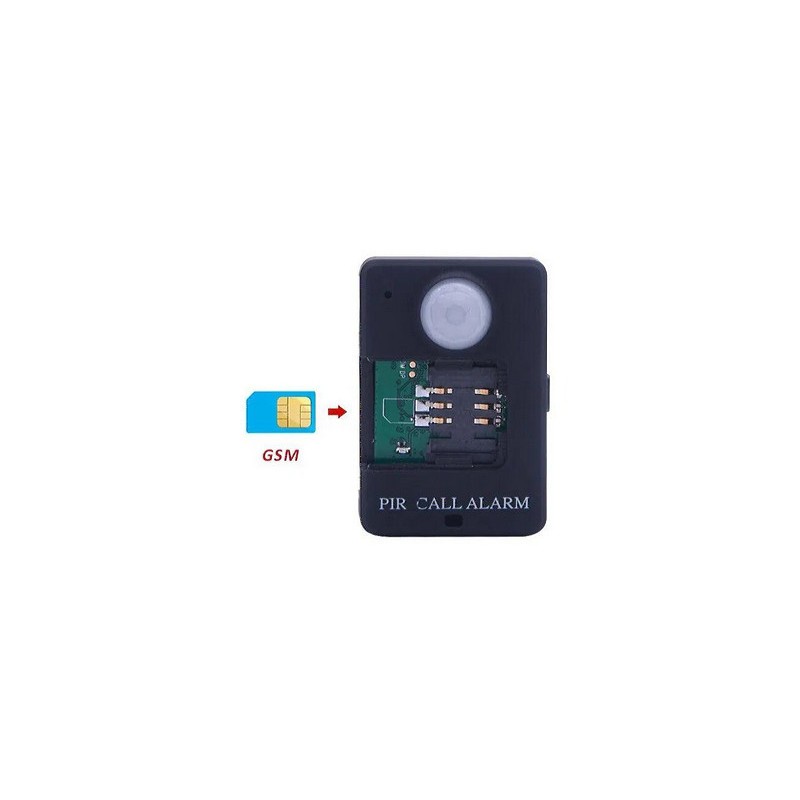

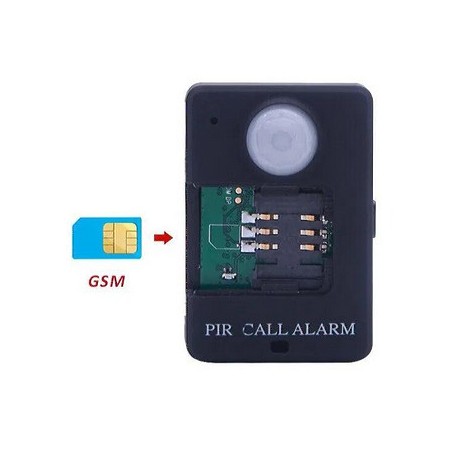

1. Insert SIM card into the device for controlling. (GSM SIM card is recommended)

2. Number binding: any number call in 15 seconds later will be connected automatically.

Hearing voice answer from the phone means binding successful.

3. Put or paste the alarm in a certain height, within 5 meters within the angular range

120 degrees left and right, as long as people or animals, swaying back and forth in a

very short time, induction starts.

4. Monitoring and Interception: -After turning on, it can be connected by communication

tools. And waiting for a few seconds after getting through, you can hear clearly the situation

15 meters area around.

5. Remote Control Setting: - By sending 0000 with your mobile phone to the SIM card number,

it can be shut down, sending 1111 will activate this sensing function.

Specification:

Sensitivity: 5-8m/16-26ft (center angle: 90 degrees)

Standby current: below 0.05mA

Working current: below 10mA

Operating frequency: 850MHz, 900MHz, 1800MHz, 1900MHz

Standby Time: 5-7days (for body sensing); 15-20 days (not for body sensing)

Input Voltage: 100-240V AC 50-60HZ 150Ma

Output Voltage: 5V 500MA

Alarm size: 4.7 * 3.2 * 1.5cm/ 1.8 * 1.2 * 0.6in

Engelsk Manual
